Modular data loggers
for analog measurements

Trust Graphtec instruments for your most important measurements!

Introduction

It’s an analog world – strain, pressure, voltage, current — these are the measurements that your Graphtec instrument will faithfully capture for you. On paper or in memory, or both. Trust Graphtec instruments for your most important measurements!

Data Platform GL7000

Modules allow wide range of measurements
Able to use for a wide range of applications in various measurement scenes by extending different type of input module.

Extending Modules
Allow to make various measurements according to the purpose by adding the units corresponding to the measurement signals.

Touch Panel System
Intuitive operation by using touch panel.
Also able to operate with cursor keys with the same feeling as the midi LOGGER GL serie.

Supports Multiple Storage
Equipped various data collection methods and network functions to be adapted for variety of measurement applications.

Midi LOGGER GL840

Three types of input systems enable measurement of various signals
Along with the basic analog signal, Logic/Pulse, and digital sensors can be all connected to monitor a variety of measurements.

Wireless measurement using wireless LAN (option)
Wireless LAN option enables the wireless communication with other device. When the GL840 is set as a station, PC and smart devices will be able to access the WLAN unit directly.

Combining GL100-WL and GL840
GL100-WL can now be connected to the GL840 as a remote sensor using the WLAN feature. GL840 supports up to five units of the GL100-WL.

Useful Functions
Various functions, such as a bar chart data display, alarm output function, navigation function, and networking features, are available in the GL840 to assist be conveniently used.

Maximum sampling interval of up to 10ms
Provides faster sampling rate 10ms for voltage measurement.

Built-in 4GB Flash memory with SD card support
The new GL series enables reliable long term measurment with its built-in 4GB flash memory and SD card slot for external storage devices.

Midi LOGGER HV GL2000

High speed 1 MS/s simultaneous sampling with isolated input
GL2000 is equipped with an isolated input mechanism to protect signals from interferences caused by noise from other channels. 16-bit A/D converter adopted to achieve hi-speed and hi-resolution measurement.

Multifunction input with CAT III measurement category
Voltage, temperature, humidity, logic and pulse measurements can all be taken simultaneously in high speed.

Large Easy-to-read 7-inch LCD
Adopts large TFT LCD with multiple methods for displaying information.

Quick and Easy Set Up Process
Simple operation with cursor and enter keys with six pre-set menu screens on large LCD.

Supports large built-in RAM (4MS/ch) and built-in Flash (4 GB)
Long term recording is made possible with 4 M sampling/ch built-in RAM and 4 GB built-in Flash memory. It supports both USB Flash memory and SD Card memory to be used as external storage devices for recorded data for certain sampling intervals.

Correction with thermal printer DP-581H
The printer can be connected via USB or LAN cable. Print out data instantly and prevent data tampering.

Midi LOGGER GL980

High speed 1 MS/s simultaneous sampling with isolated input
GL980 is equipped with an isolated input mechanism to protect signals from interferrences caused by noise from other channels. 16-bit A/D converter adopted to achieve hi-speed and hi-resolution measurements.

Multifunction input
Voltage, temperature, humidity, logic and pulse measurements can all be taken simultaneously in high speed.

Large Easy-to-read 7-inch LCD
Adopts large TFT LCD with multiple methods for displaying information.

Quick and Easy Set Up Process
Simple operation with cursor and enter keys with six pre-set menu screens on large LCD.

Supports large built-in RAM (4MS/ch) and built-in Flash (4 GB)
Long term recording is made possible with 4 M sampling/ch built-in RAM and 4 GB built-in Flash memory. It supports both USB Flash memory and SD Card memory to be used as external storage devices for recorded data for certain sampling intervals.

Correction with thermal printer DP-581H
The printer can be connected via USB or LAN cable. Print out data instantly and prevent data tampering.

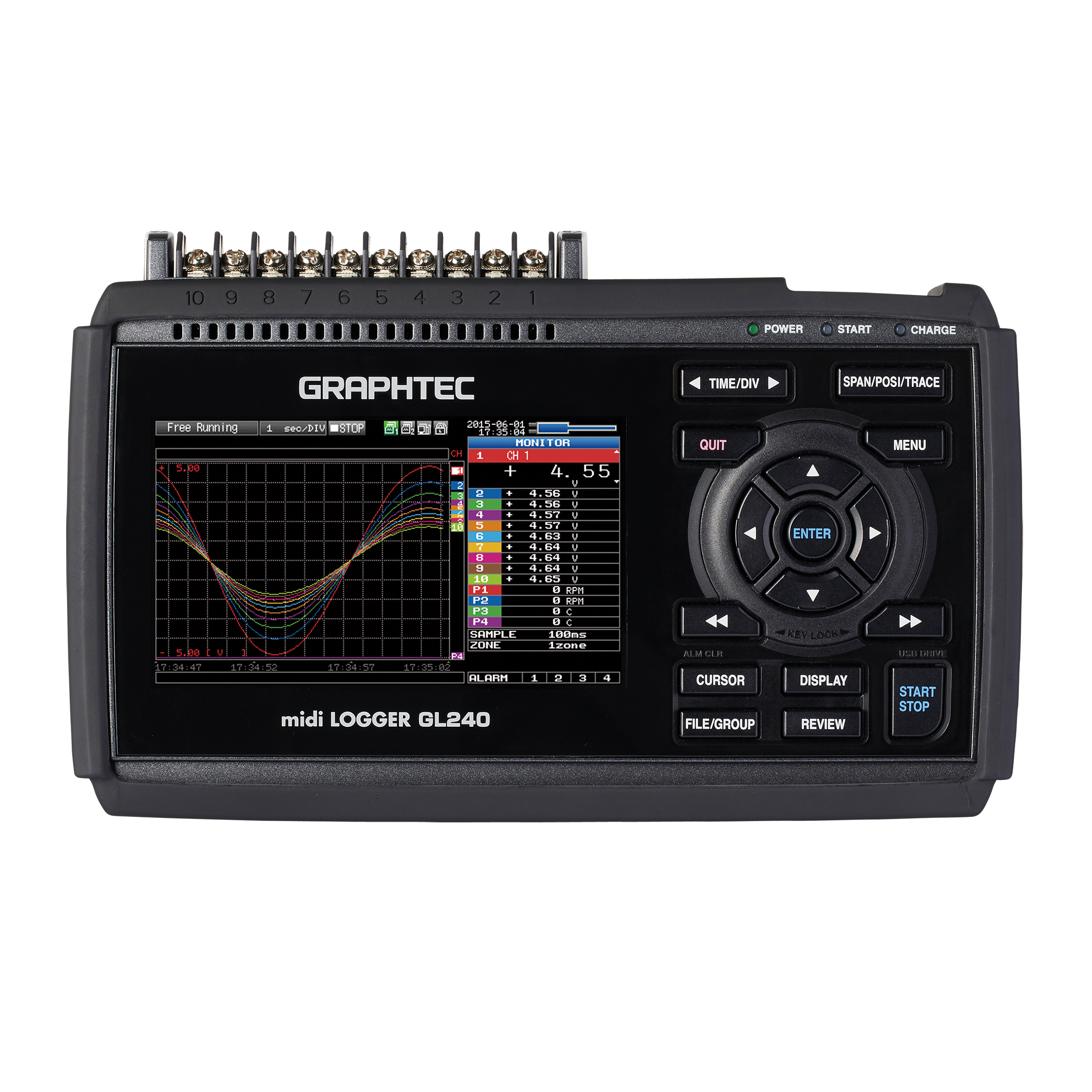

Midi LOGGER GL240

Wireless measurement using wireless LAN (option)
Wireless LAN option enables the wireless communication with other device.When the GL240 is set as a station, PC and smart devices will be able to access the WLAN unit directly.

Combining GL100-WL and GL240
GL100-WL cab now be connected to the GL240 as a remote sensor using the WLAN feature.GL240 supports 1 unit of the GL100-WL.

All channel isolated/Universal input, Standalone Multi-Channel
Its compact size contains an isolated input system which ensures that signals are not corrupted by inputs to other channels.

Maximum sampling interval of up to 10ms
Provides faster sampling rate 10ms for voltage measurement.

Built-in 4GB Flash memory with SD card support
The new GL series enables reliable long term measurement with its built-in 4GB flash memory and SD card slot for external storage devices.

Useful functions
Various functions, such as a bar chart data display, alarm output function, and networking features, are available in the GL240 to assist be conveniently used.

Midi LOGGER GLT400

Useful functions of GLT400
Embedded into system or recorded data can be transferred to PLC as additional I/O. Remote terminal unit of GL840.

Channel Expandability & various input terminals depending on application
Combinations of input terminal / terminal base allow various configurations depending on measurement conditions.

Data can be saved to main unit flash memory
With multifunction input, the main unit is equipped with about 4GB of flash memory.
In addition, it is equipped with an SD memory card slot.(32GB max.)

Two types of PC software are available according to the application
In addition, it is possible to do settings, control, data confirmation / transfer from a PC without using dedicated software.

Petit LOGGER GL100

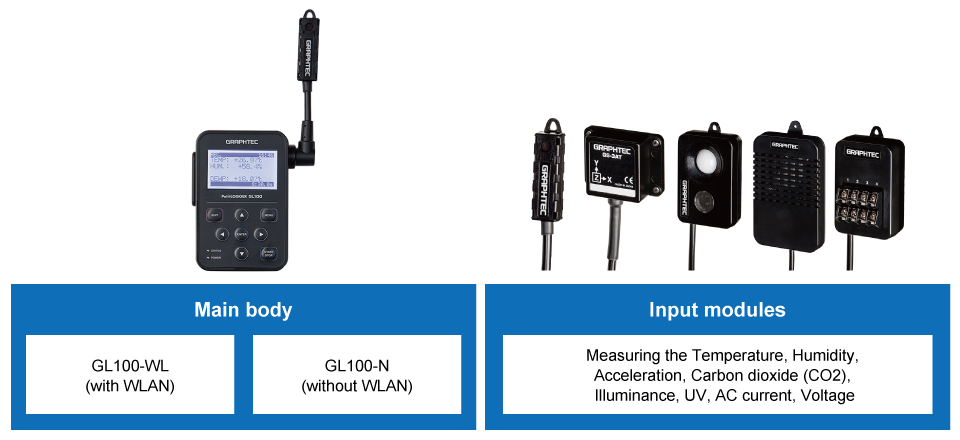

It is modular type that is able to support variety measurement by exchanging the input module.
Multiple sensors and the input terminal are available for corresponding to the application.

  • Easy measurement by multifunction input
  • Available the software for PC & Smart devices
  • Possible to check the data in multiple method
  • Reliable measurement with useful functions

Flexible input module allows wide range of measurements
The GL100 series announces support for additional sensors in volatile wireless and non-wireless environments with ability to exchange input module.
GL100 are using the Wireless LAN (WLAN) of the IEEEE802 standards. Area that can use it is limited by the Wireless Telegraphy Act in the region.

Thermal Printer DP-581H

Connection with the GL unit

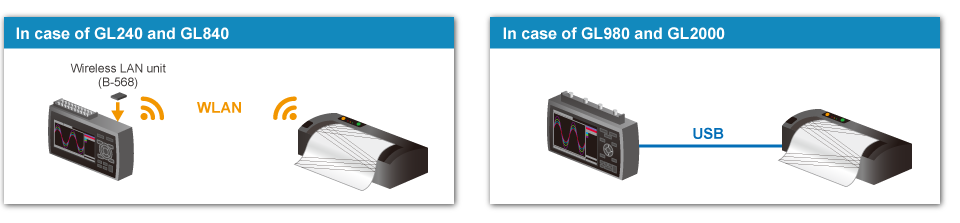

The printer can be connected with GL240 or GL840 series wirelessly.
(Optional WLAN module (B-568) is required on GL240 or GL840 series.)
The printer can be connected to the GL980 or GL2000 with USB or LAN cable.

Supports built-in battery
It allows to print data without AC power by driven with built-in rechargeable battery, enables to use anywhere. Lithium-ion battery (6-cell, 11.1 V, 6000 mAh, 66.6 Wh)

Driving time: Approx. 150 meters of printing at full charge (continuous printing at 5 mm/s with a low printing rate)
* When it is used with slower feed speed or longer standby time, the printable length becomes shorter

Feeding speed: Up to 5 mm/s when using the battery pack
* The battery pack or AC adapter is automatically selected, AC adapter has priority. It is not switched while data is being printed.

Wider printing area
It is large type portable printer using 210 mm wide paper, it enables to print waveform with a width of 200mm.

Direct printing with useful functions
It can be connected directly to GL series, and it enables to print data without using PC.

– Y-T (waveform) format data printing

Real time measurement with the GL unit
Synchronous or asynchronous with the trigger.
Replaying saved data with the GL unit
All data or data in the area specified by cursors is printed.

– Digital format data printing

Real time measurement with the GL unit
Synchronous or asynchronous with the trigger.
(For GL240 and GL840 series only)
Replaying saved data with the GL unit
Prints data in digital data while data is being replayed on the GL unit in Y-T display mode. Option to print data in the area specified by cursors
* Up to 1000 data points.

– X-Y graph format data printing
Data is printed in X-Y graph when data is being displayed in the X-Y mode on the GL unit.
(For GL980 and GL2000 only)

Bar graph format printing
Data is printed with accumulated data graph when data is displayed with stacked bar graph on the GL unit.
* It is available using GL240 or GL840 series with GS sensor.

Screen copy
Image of screen displayed on the GL unit is printed.
